PVDF Series - Product
PVDF Series - Product
  • 037e671d830ffb6e

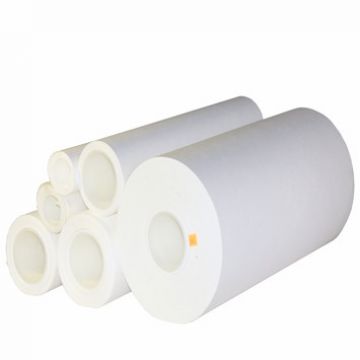

Special separation membrane - XF Series

  • Material : PVDF, Permanent functional modification
  • Pore size : 0.45, 1.0, 2.0, 5.0 μm
  • Form : Flat roll membrane
  • Width : 40 ~ 500 mm
  • Thickness : 70 ~ 300 μm
  • Facture : Phase inversion / Chemical reaction

Technical Specification

Technical Data

Product ModelX1040X1100X1200X1500
Pore Size (μm)0.451.02.05.0

Absolute Ethanol First

Bubble Pressure (MPa)
0.060.030.0150.008
Thickness (μm)70 ~ 300
Reinforcement MaterialNon(1),?PP(3),?PET(4)
ApplicationAdsorption Separation, Affinity?Separation, Chromatograph?Separation, Ion Exchange?Separation

Explanation:

1. Product implementation standard: QB/T02-2008 "PVDF microporous membrane"

? ?QB/T05-2015 "Fluorine material microporous membrane - medical"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material?
